Soil Stabilization for Roads in Melbourne

Technical studies that support your project.

LEARN MORE

The clay-rich soils of Melbourne's northern suburbs, like Epping and Craigieburn, react very differently to loading than the sandy alluvial deposits found in Fishermans Bend or the sand belts of the south-east. Designing a pavement that lasts requires adapting the stabilization method to each substrate. In the north, we treat high-plasticity clays with lime to reduce swell potential. Along the Yarra River, cement stabilization binds sandy, loose materials into a firm base course. This city's varied geology means one approach never fits all. We assess the subgrade, run Atterberg limits and compaction tests, and then prescribe the correct binder and dosage for the specific soil type. The result is a road foundation that resists moisture damage and traffic loads for decades.

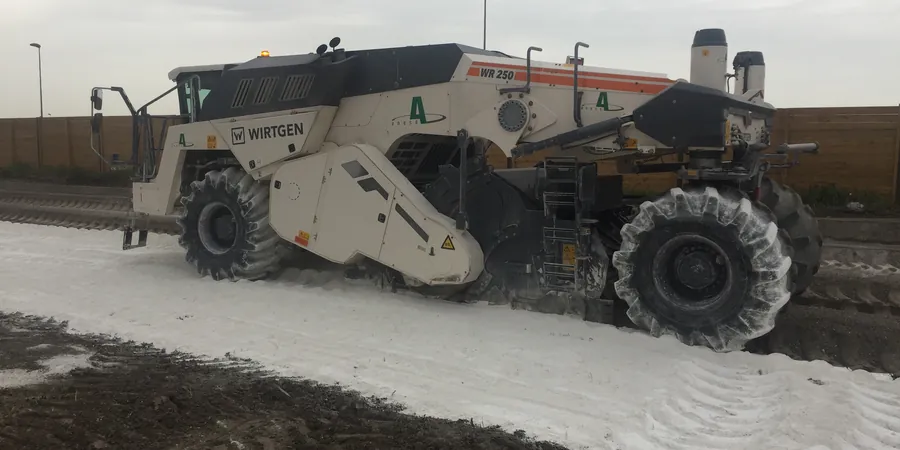

Illustrative image of Soil stabilization for roads in Melbourne
In Melbourne's reactive clay zones, lime stabilization is the primary defense against pavement heave and longitudinal cracking.

Our service areas

Methodology and scope

Melbourne's climate alternates between wet winters and dry summers, causing significant moisture fluctuations in the soil profile. This seasonal movement directly impacts pavement performance. For roads in areas like Werribee or the Mornington Peninsula, we often combine lime stabilization with a geotextile separation layer to prevent subgrade pumping and maintain the treated zone's integrity. In the city's inner suburbs, where road widening is common, we blend cement into the existing fill and compact it to a high density, then verify the result with CBR testing to confirm the design strength. The key is to treat the soil before it is sealed under asphalt, locking in the improved mechanical properties before wetting cycles can undo them.
Technical reference — Melbourne

Local considerations

A major arterial road in Melbourne's west was built on compressible clay without adequate stabilization. Within two years, differential settlement caused a 150 mm dip at a bridge approach. The repair cost was four times the original stabilization contract. The root cause was using cement on a high-plasticity clay without a mellowing period. The lime-clay reaction needs time to modify the soil's plasticity before compaction. Skipping that step traps expansive minerals in the pavement. We always specify a 24-hour mellowing period for lime-treated clays in Melbourne, matching the design to the mineralogy of the specific site.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.vip

Applicable standards

AS 4678:2002 – Earth Retaining Structures (referenced for treatment depth), Austroads Guide to Pavement Technology Part 4D – Stabilised Materials, AS 1289 – Standard Test Method for Using pH to Estimate the Soil-Lime Proportion

Technical parameters

ParameterTypical value
Unconfined Compressive Strength (UCS) at 7 days0.7 – 2.1 MPa
Target CBR after stabilization≥ 20% (subgrade) / ≥ 80% (base)
Lime content (by dry weight)2 – 6% for clays
Cement content (by dry weight)3 – 8% for sands/silts
Maximum dry density (Standard Proctor)1.6 – 2.1 t/m³
Optimum moisture content range12% – 20%

Frequently asked questions

How much does soil stabilization for roads cost in Melbourne?

For a typical road project, the cost ranges between AU$1.120 and AU$4.980 depending on treatment depth, binder type, and site access. Lime stabilization for deep clay zones sits at the higher end, while cement treatment for shallow granular subgrades is at the lower end. We provide a fixed quote after the initial soil classification tests.

What is the difference between lime and cement stabilization for Melbourne soils?

Lime modifies clay mineralogy first, reducing plasticity, then gains strength slowly over weeks. Cement bonds particles directly through hydration, gaining strength in days. Lime suits high-PI clays (>30) common in the north and west. Cement works best on sands and low-plasticity silts found in the south-east and along river corridors.

How deep do you treat the soil when stabilizing a road pavement?

Treatment depth depends on the pavement design. For light-duty residential roads, we treat 200–300 mm of subgrade. For heavy-haul industrial roads or state highways, depth can reach 400–500 mm. We always verify with in-situ density tests and CBR after compaction to confirm the full depth meets specification.

Do you need to remove the existing pavement before stabilization?

Not always. If the existing pavement is cracked but not severely deformed, we can pulverize and blend it into the subgrade, then stabilize the combined material. This reduces waste and fill import costs. We assess the material profile with test pits first to decide if full removal is necessary.
