MSE Wall Design in Melbourne: Engineered Soil Reinforcement

The difference between building an MSE wall in Melbourne's inner suburbs like Fitzroy versus outer growth areas like Werribee is striking. Fitzroy's dense urban fill over basalt clay demands careful reinforcement integration with existing structures. Werribee's deep Quaternary alluvial deposits, often soft and compressible, require thorough settlement analysis before any soil reinforcement design. These local contrasts mean a standard MSE wall design rarely works across both settings. Before specifying reinforcement layouts, engineers rely on calicatas exploratorias to verify soil stratification and locate groundwater levels that could affect backfill drainage.

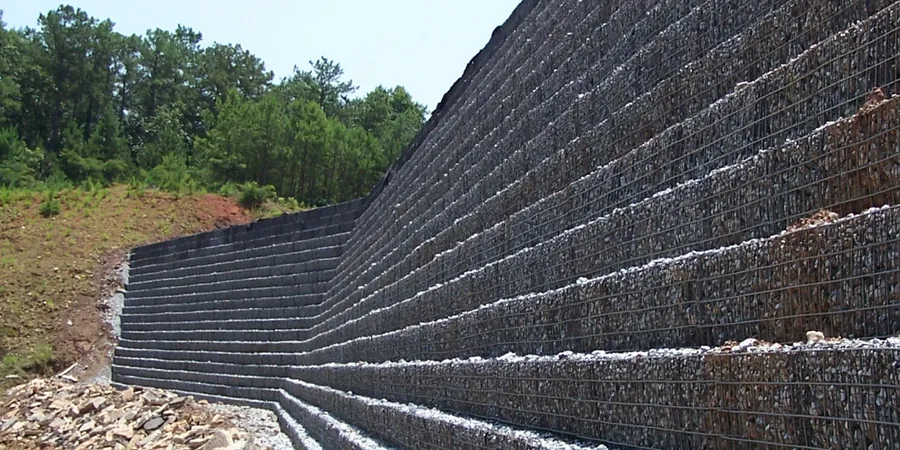

Illustrative image of MSE (Mechanically Stabilized Earth) wall design in Melbourne

Melbourne's variable geology, from basalt clays to alluvial silts, demands site-specific MSE wall design rather than generic reinforcement layouts.

Our service areas

Ground improvement

Unsaturated soil analysis ›Stone column design ›Dynamic compaction design ›Deep Soil Mixing (DSM) design ›Geotechnical drainage design ›

VIEW ALL GROUND IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Debris flow analysis ›Factor of safety (FS) calculation ›

VIEW ALL SLOPES & WALLS ›

Foundations

Differential settlement analysis ›Settlement analysis ›Bearing capacity analysis ›Foundations on fill (analysis) ›Shallow foundation design ›

VIEW ALL FOUNDATIONS ›

Methodology and scope

Melbourne's geology is dominated by Silurian mudstone and sandstone in the east, Quaternary basalt flows in the west, and alluvial terraces along the Yarra River corridor. For MSE wall design in this region, the key parameters are internal friction angle of the reinforced fill, pullout resistance of the geosynthetic or steel strips, and global stability against sliding and overturning. We follow AS 4678-2002 for earth retaining structures, which prescribes partial factors for soil strength and reinforcement loads. The design also considers Melbourne's moderate seismicity (AS 1170.4 acceleration coefficient of 0.08g for most areas), which influences the pseudo-static seismic check. A typical MSE wall here uses granular backfill with less than 15% fines to ensure adequate drainage and frictional interlock.

Technical reference — Melbourne

Local considerations

In Melbourne, we often see MSE wall failures traced back to poor drainage behind the reinforced zone. The city's clay-rich subsoils, especially in areas like Doncaster and Templestowe, can retain water and generate hydrostatic pressures that reduce reinforcement pullout capacity. Another common issue is differential settlement between the wall face and the reinforced block when founded on compressible alluvial soils along the Maribyrnong River. A proper geotechnical investigation including consolidation testing is critical before committing to an MSE design in these zones.
