Soil Erosion Analysis Melbourne – Geotechnical Assessment for Stable Ground

Technical studies that support your project.

LEARN MORE

Many construction teams in Melbourne assume topsoil loss is only a landscaping concern, then watch cut slopes unravel after the first heavy autumn rain. Without quantifying erodibility parameters such as dispersion ratio, shear strength of the surface layer and particle detachment thresholds, temporary batters fail and sediment loads exceed EPA Victoria guidelines. We integrate field infiltration tests with calicatas exploratorias to visualise soil layering, then run laboratory dispersion tests on the same samples. This dual approach captures both surface runoff behaviour and sub-surface seepage paths, giving engineers the data needed to design effective sediment basins and stabilisation measures before earthworks begin.

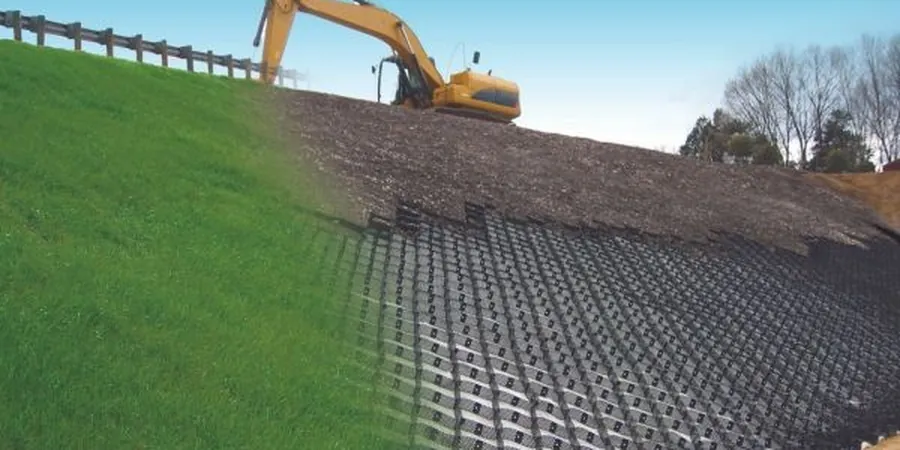

Illustrative image of Soil erosion analysis in Melbourne
A standard soil erodibility test can reduce sediment basin sizing by 25% when the actual K-factor is half the tabulated value.

Our service areas

Methodology and scope

Melbourne’s variable climate — from prolonged dry spells to short, intense thunderstorms — drives a unique erosion risk pattern. The city’s clay-rich soils, particularly the basaltic clays of the western plains, swell and crack during summer, creating macro-pores that funnel water straight into the subsoil when rain finally arrives. We combine ensayo de permeabilidad en campo with erodibility classification (K-factor from the Revised Universal Soil Loss Equation) to quantify how fast water actually moves through these cracked profiles. For sites on the sandy loams of the Mornington Peninsula, where surface crusting reduces infiltration, we run ensayo de infiltración to differentiate between Hortonian overland flow and saturation-excess runoff. Each parameter feeds directly into the site-specific erosion and sediment control plan required under AS 4678-2002.
Technical reference — Melbourne

Local considerations

Melbourne recorded its wettest calendar year on record in 2024 with over 1 100 mm at several Bureau of Meteorology stations, a 40% increase above the long-term average. When prolonged wet periods coincide with exposed earthworks, even low-dispersion soils can develop rill erosion that deepens into gullies overnight. A 200 mm deep rill on a 1:3 batter removes structural support from the slope toe, potentially triggering a shallow translational slide. Our soil erosion analysis quantifies this link between runoff volume and slope stability, allowing engineers to set trigger levels for temporary drainage and sediment controls before the next storm event.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.vip

Applicable standards

AS 4678-2002 Earth-retaining structures (erosion aspects), AS 1289.3.8.1 Determination of dispersion percentage, EPA Victoria Publication 1267 (sediment control guidelines), RUSLE2 (Revised Universal Soil Loss Equation) methodology

Technical parameters

ParameterTypical value
Soil erodibility (K-factor)0.02 – 0.08 t·ha·h/(ha·MJ·mm) (RUSLE)
Dispersion ratio (AS 1289.3.8.1)5 – 80 %
Emerson aggregate stability class1 – 8
Saturated hydraulic conductivity (field)1×10⁻⁸ – 1×10⁻⁴ m/s
Shear strength of topsoil (triaxial UU)20 – 80 kPa
Critical shear stress for erosion initiation0.5 – 5 Pa

Frequently asked questions

When is soil erosion analysis required on a Melbourne construction site?

It is mandatory for any project disturbing more than 2 500 m² of land under EPA Victoria regulations, and strongly recommended for smaller sites with slopes steeper than 10% or highly dispersive soils common in the western suburbs.

How much does a soil erosion analysis cost in Melbourne?

A standard package covering K-factor testing, dispersion ratio, and two field infiltration tests typically ranges from AU$1 350 to AU$3 860, depending on the number of soil horizons and the need for additional runoff modelling.

What is the difference between soil erodibility and soil loss?

Soil erodibility (K-factor) is an intrinsic property of the soil — how easily its particles detach and are transported by raindrop impact or overland flow. Soil loss is the actual mass removed per unit area per year, which also depends on rainfall erosivity, slope length, slope steepness, cover management and erosion control practices.

Can soil erosion analysis help reduce sediment basin volume?

Yes. When the measured K-factor is lower than the default value assumed in the design manual, the calculated soil loss decreases proportionally, allowing you to reduce the required sediment basin volume without compromising compliance. We have seen reductions of up to 30% on basaltic clay sites in the Maribyrnong area.
