Preloading with Surcharge Design in Melbourne – Soft Soil Stabilization

Technical studies that support your project.

AS 4678 sets the standard for earth retaining structures, and that includes preloading with surcharge design when dealing with compressible clays. In Melbourne, the Coode Island Silt formation presents a unique challenge. These soft, highly compressible deposits sit beneath large parts of the inner city and port area. Without staged loading and surcharge, settlements can drag on for years. We apply the Asaoka method and Terzaghi's consolidation theory to predict timelines. Our team also integrates groundwater drainage design to accelerate pore pressure dissipation during the preloading phase.

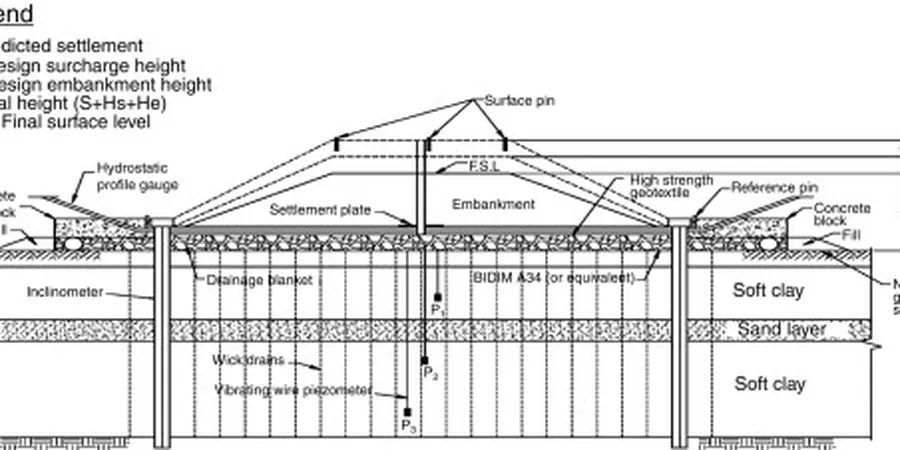

Illustrative image of Preloading with surcharge design in Melbourne

In deep Coode Island Silt, preloading with surcharge can cut primary consolidation time from years to months when designed correctly.

Our service areas

Ground improvement

Dynamic compaction design ›Geotechnical drainage design ›Jet grouting design ›Preloading with surcharge design ›Vibrocompaction design ›

VIEW ALL GROUND IMPROVEMENT ›

Slopes & Walls

Soil erosion analysis ›Slope stability analysis ›Slope failure analysis ›Factor of safety (FS) calculation ›Geocell design ›

VIEW ALL SLOPES & WALLS ›

Laboratory

Residual soil characterization ›Oedometer consolidation test ›Direct shear test ›Laboratory CBR test ›Proctor test (Standard or Modified) ›

VIEW ALL LABORATORY ›

Methodology and scope

From our lab in Melbourne we see a common pattern: many sites have a thin crust over deep soft clay. That crust gives a false sense of strength. Preloading with surcharge design must account for the underlying consolidation behavior. We use oedometer tests and CRS tests to determine cv and mv.

We calculate surcharge height based on target post-construction settlement.
We monitor settlement via plate gauges and extensometers during the fill placement.

For critical infrastructure we also run a consolidation analysis with finite element models to validate the staged loading schedule. This avoids surprises when the surcharge is removed.

Technical reference — Melbourne

Local considerations

Compare the sandy basalts of the eastern suburbs with the deep alluvial clays of Fishermans Bend. In the west, preloading with surcharge design is straightforward because drainage paths are short. In the south, the silt layer can exceed 20 meters with low permeability. The main risk there is slow consolidation that stalls the project. Without proper instrumentation and staged loading, differential settlements can damage adjacent structures. We have seen cases where the surcharge height was underestimated, leading to residual settlement of over 100 mm after occupancy.

Need a geotechnical assessment?

Reply within 24h.

Email: contact@geotechnicalengineering1.vip

Applicable standards

AS 4678 – Earth Retaining Structures, AS 1726 – Geotechnical Site Investigations, AS/NZS 1170.0 – Structural Design Actions (general principles)

Technical parameters

Parameter	Typical value
Coefficient of consolidation (cv)	0.5 – 5 m²/year
Pre-consolidation pressure (σ'p)	50 – 150 kPa
Compression index (Cc)	0.3 – 0.8
Surcharge load ratio	1.3 – 2.0 x design load
Settlement monitoring frequency	Weekly during surcharge fill
Degree of consolidation required	≥ 90% at design load

Frequently asked questions

How much does preloading with surcharge design cost in Melbourne?

The cost for a preloading with surcharge design study in Melbourne ranges between AU$1.330 and AU$3.830. This includes laboratory testing, settlement analysis, and a staged loading plan. The final price depends on the number of boreholes and the depth of the compressible layer.

What is the difference between preloading and surcharging?

Preloading applies a fill load equal to the design load to pre-consolidate the soil. Surcharging uses an additional load above the design load to accelerate consolidation. Both are part of a preloading with surcharge design, but surcharging is used when time is critical.

How long does surcharge need to stay in place for soft clays?

For Melbourne's Coode Island Silt, the surcharge typically stays 3 to 6 months to achieve 90% consolidation. The exact duration depends on the clay's cv value and the drainage path length. Our design includes settlement monitoring to confirm when the surcharge can be removed.

Can preloading with surcharge design be used for shallow foundations?

Yes, it is commonly applied before raft or strip footings on soft ground. The surcharge pre-consolidates the clay layer, reducing long-term settlement. We combine the design with a bearing capacity analysis to ensure the foundation soil can support the final load without failure.
